roller shutter switch, door contact magnetic switch sensor for wooden door PY-C55ZLroller shutter switch, door contact magnetic switch sensor for wooden door PY-C55ZL

roller shutter switch, door contact magnetic switch sensor for wooden door PY-C55ZL

  • * Dimension: 106*38*10mm (switch)/106*16*16mm(magnet)/50*50mm ( L type)
  • * Housing: Metal(Alloy-Zn ),grey
  • * Gap: 50-70mm / 60-70mm available
  • * Output: N.C./ N.O. & Changeover available
  • * Leads: 1007UL22AWG530mm, with 380mm stainless steel cable
  • * Inner packing: 1set/PE  ,each part packed individually
  • * Outer packing: 50sets/carton
  • * Gross Weight: 18.0KG
  • * Remarks: 6 screws including

1.0 Specification


Roller shutter sensor,heavy duty overhead door contact sensor,

for Mounting on Door Tracks,

Adjustable "L" bracket, magnet can be installed in many ways!

Armored cable in 380mm or 480mm length

Wider Gap for reduced false alarms

Closed Loop, open loop and SPDT types





1. Housing: zinc

2.Color: grey

3.Gap:50-70 mm

4.Certificates:FCC,CE ,ROHS

5.Surface mounted with screws, leads 530mm standard length, with armored cover cable of 380mm or 480mm

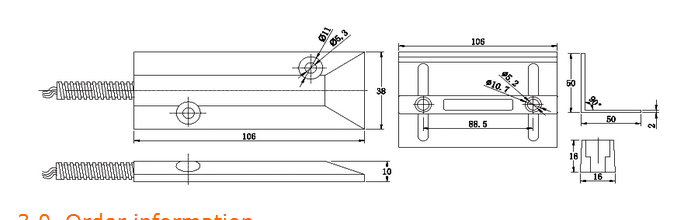

2.0  Dimension(mm)



3.0  Order information



Specification Output Casing Material Action Gap(mm) Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ) MOQ(PCS)
NC-ZN-6070 NC zinc 60-70 0.5A/100V/10W/200mΩ 0
N0-ZN-5060 NO zinc 50-60 0.2A/30V/3W/200mΩ 0
COM-ZN-5060 Changeover zinc 50-60 0.2A/30V/3W/200mΩ 0
